Easy Setup for Any Screen Shape

The AH500ST makes golf simulator setup simple with dedicated installation features built for home users. Quickly adjust your image to fit your impact screen without complicated setup.

• Screen Fill
• Quick Focus

Ready for Wireless Projection

With an optional wireless dongle, the AH500ST's Wi-Fi capability allows wireless projection from compatible mobile devices, helping reduce cables around your simulator. (contact us)

Short Throw Lens Designed for Golf Sim

Make the most of smaller simulator spaces. The AH500ST's ultra-short 0.499 throw ratio produces a large image from a shorter distance, helping keep the projector away from the hitting area while reducing unwanted shadows.

Up to 200-Inch Display

Create an immersive simulator experience even when space is limited. The AH500ST can produce a 200-inch image in 4:3 from just 8.9 feet away.

• 200" @ 8.9 ft
• 180" @ 8.0 ft
• 150" @ 6.7 ft
• 120" @ 5.3 ft

Screen Fill Made Simple

BenQ's exclusive Screen Fill feature makes it easy to match your projector to your impact screen. Quickly switch between 1:1, 4:3, 16:9, and 16:10 resolutions to fill your screen without stretching or distorting the image.

Bring the Course Home

The AH500ST combines laser technology with BenQ's golf-focused colour calibration to reproduce realistic course environments, from fairways and greens to bunkers and surrounding scenery.

Perfect for Any Lighting

The AH500ST's 4000-lumen laser light source delivers a bright, high-contrast image whether your simulator is in a dedicated room, basement, or garage.

• Lights On: Clear, vibrant images in brighter simulator spaces.
• Lights Off: Sharp contrast and vivid colours in darker environments.

True-to-Life Golf Colours

BenQ's dedicated Golf Mode is optimized specifically for golf simulation, delivering realistic course colours right out of the box for a more immersive indoor golf experience.

Tough Enough for Any Garage

The AH500ST's IP5X dustproof sealed engine is built to operate reliably in temperatures from 32–104°F (0–40°C), while eliminating the need for regular filter replacements.

Durable Laser Technology

With up to 20,000 hours of laser light source life in Normal mode and up to 38,000 hours in ECO mode, the AH500ST is designed for years of low-maintenance golf simulation.

Specifications

• Brightness (ANSI Lumens) - 4000
• Native Resolution - 1080P (1920 x 1080)
• Native Aspect Ratio - 16:9
• Contrast Ratio (FOFO) - 3,000,000:1
• Display Color - 30-bit (1.07 billion colors)
• Light Source - Laser
• Light Source Life - 20,000 hrs (Normal) / 38,000 hrs (ECO)
• Throw Ratio - 0.499
• Zoom Ratio - Fixed
• Projection Offset (Full-Height) - 112%
• Keystone Adjustment - Vertical ±30°; Horizontal ±30°
• Rec. 709 Coverage - 83%
• Input Lag - 16.7 ms (1080P 60Hz); 8.3 ms (1080P 120Hz)
• Resolution Support - Up to 4K UHD (3840 x 2160)

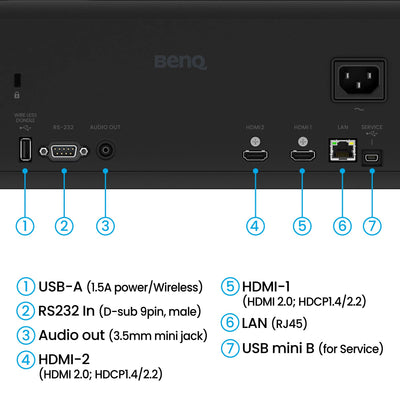

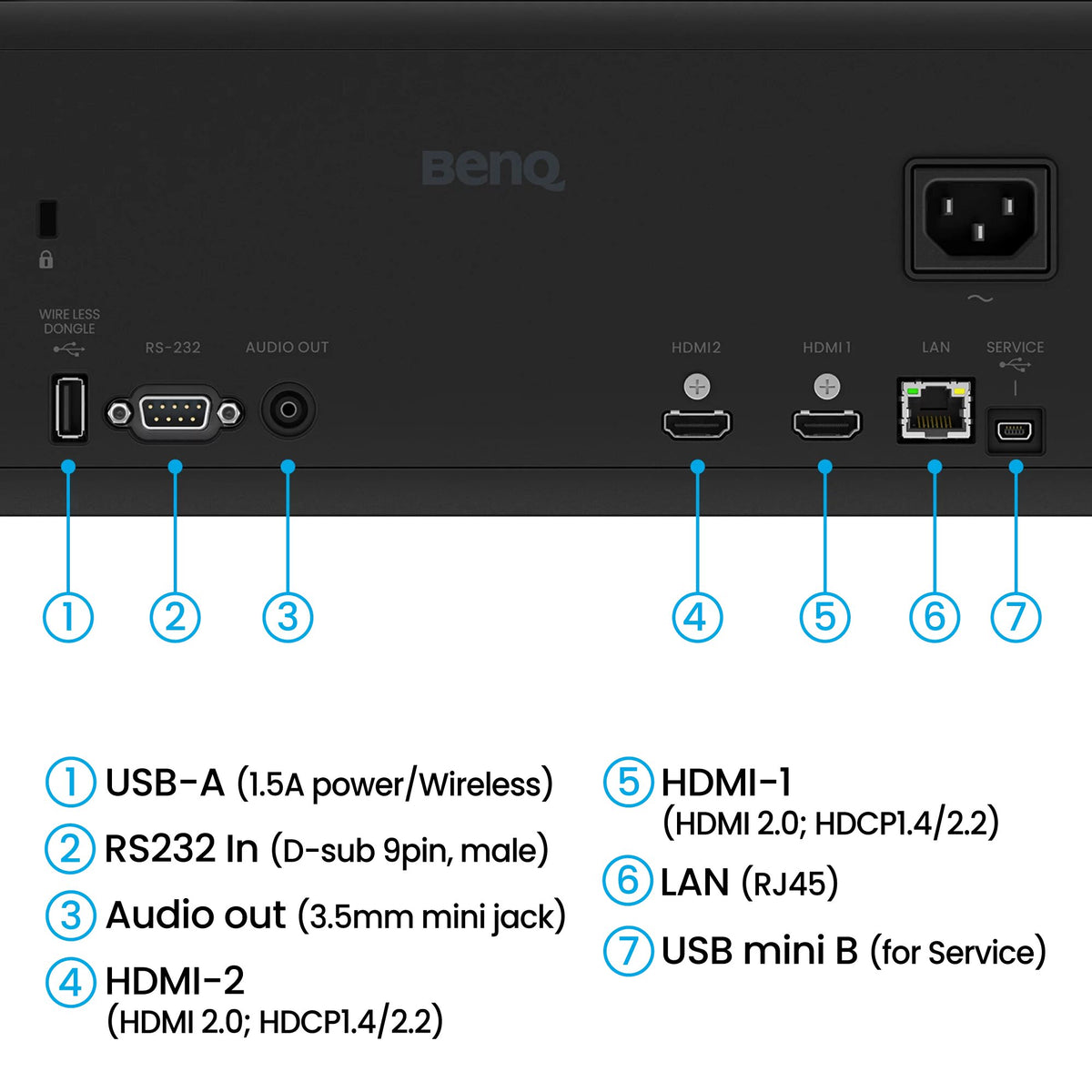

• HDMI In - x2 (HDMI 2.0a / HDCP 2.2)
• Speaker - 10W
• Projection System - DLP

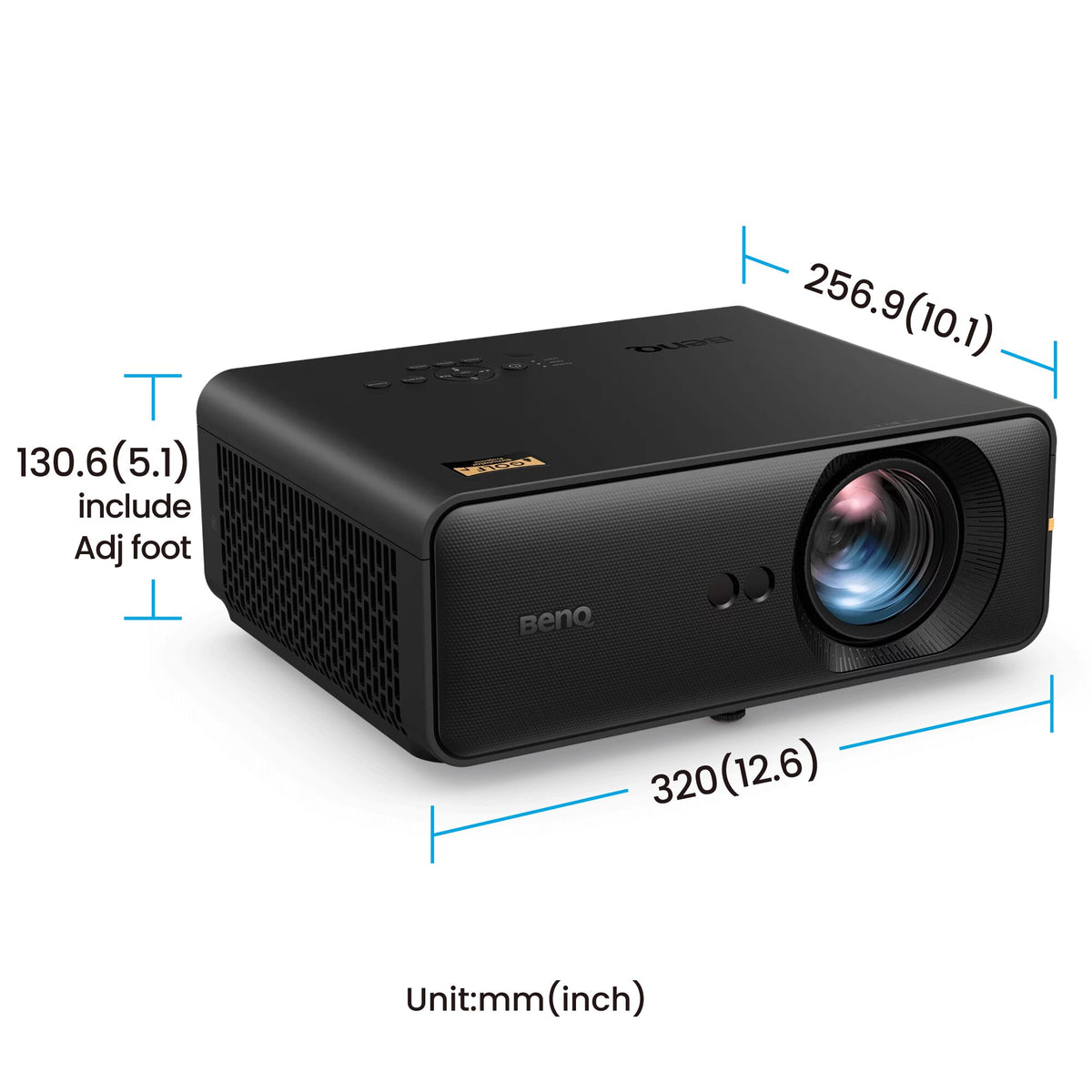

• Dimensions (WxHxD) - 12.6 x 5.14 x 10.1 in (320 x 130.6 x 255 mm)
• Weight - 11.2 lb (5.1 kg)

What's Included

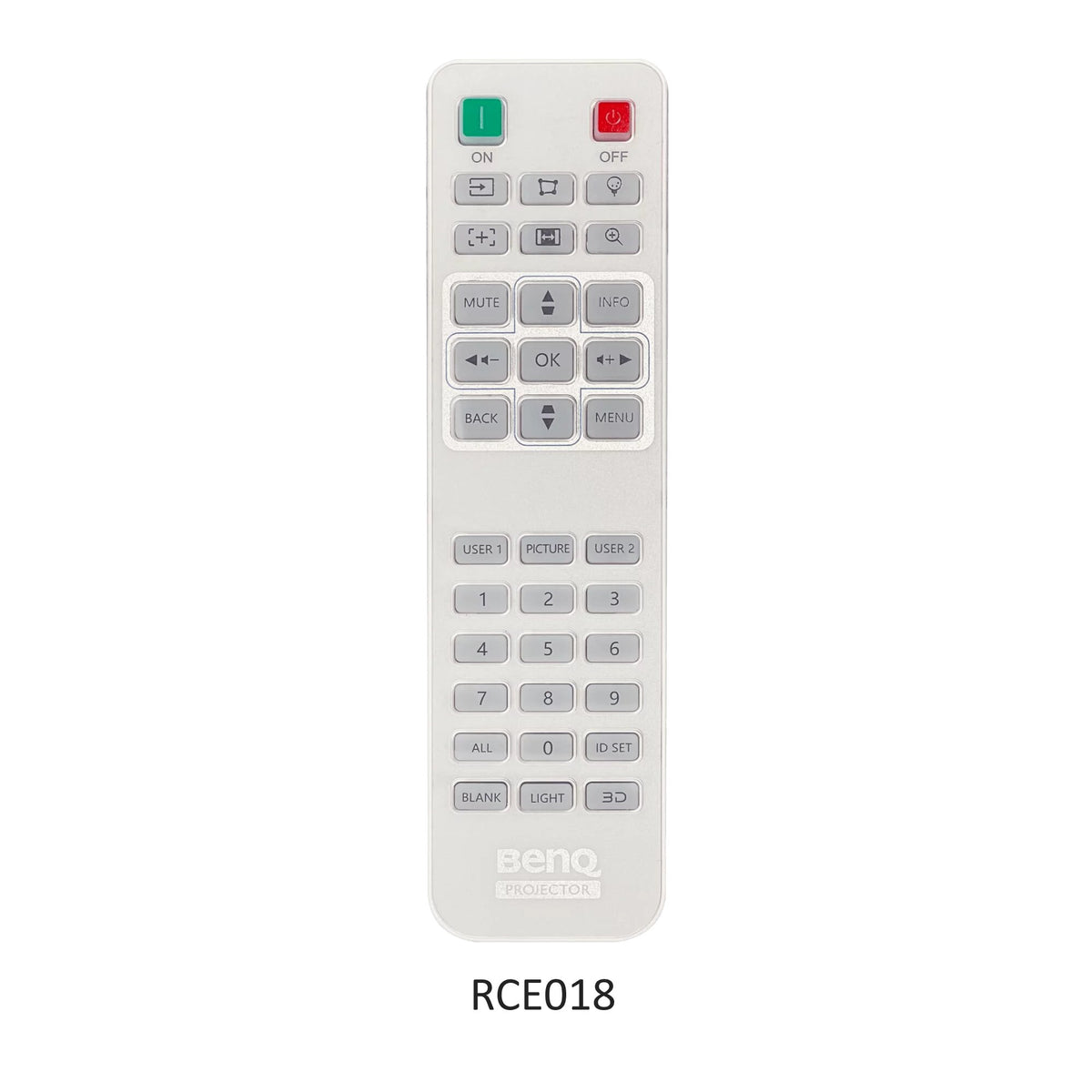

• Remote Control with Battery
• Power Cord
• Quick Start Guide
• Warranty Card (by region)
• Lens Cover

Finish your simulator build with essential gear — explore our launch monitors, enclosures, and computers to bring it all to life.
