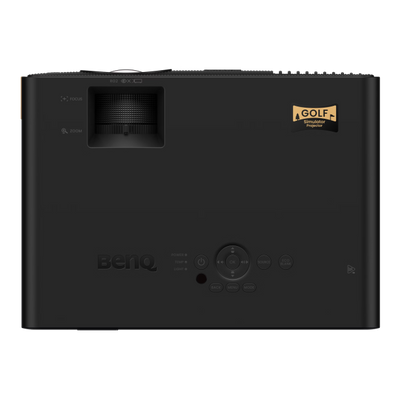

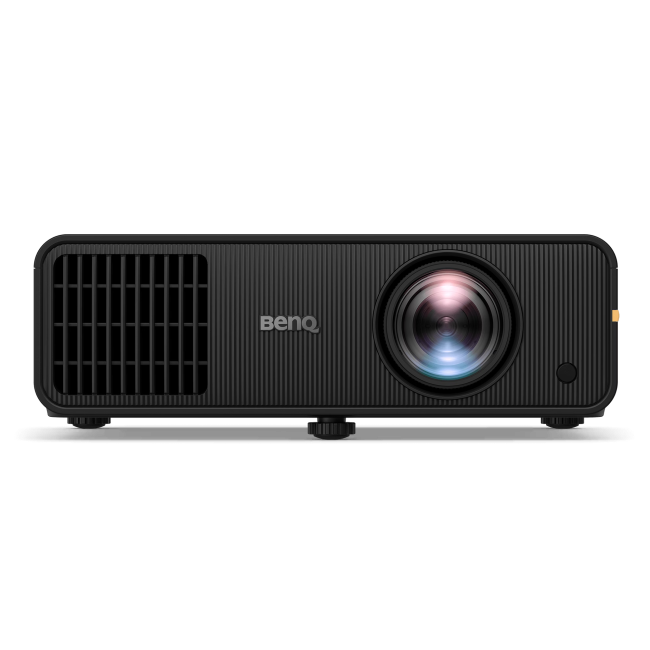

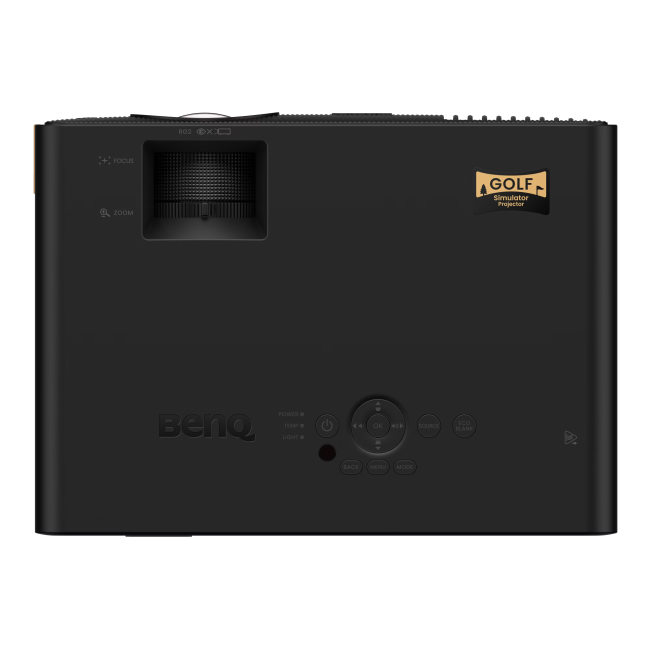

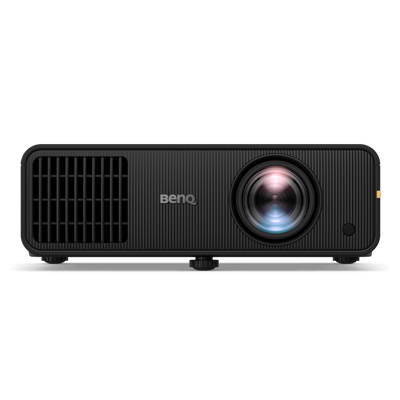

BenQ AH30ST 3000 Lumen 1080p LED Short Throw Projector
The BenQ AH30ST is a 3,000-lumen short-throw projector designed for golf simulators and smaller spaces. Its 1080p resolution, dedicated Golf Mode, and 4LED technology deliver bright, vibrant visuals, while the short-throw design allows for safe placement behind the hitting area with minimal shadows.
Features
- 3,000 ANSI lumens
- 1080p Full HD resolution
- Short-throw 0.69–0.83 ratio
Pairs well with
In stock! Ships within 5-10 business days
Easy setup with clear instructions
Trusted by golfers worldwide
Fast and reliable shipping in Canada
BenQ AH30ST 3000 Lumen 1080p LED Short Throw Projector
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Specifications & Features
Display
- Brightness (ANSI lumens): 3000
- Resolution: 1080P (1920x1080)
- Native Aspect Ratio: 16:9
- Contrast Ratio (FOFO): 20,000:1
- Display Color: 30-bit (1.07 billion colors)
- Light Source: 4LED
- Light Source Life: a. Normal 20000 hrs, b. ECO 30000 hrs
Optical
- Throw Ratio: 0.69-0.83
- Zoom Ratio: 1.2x
- Projection Offset (Full-Height): 100%
- Keystone Adjustment: 2D, (Auto) Vertical ± 30 degrees; Horizontal ± 30 degrees
- Rec. 709 Coverage: 95%
- Picture Modes: 3D, Bright, Cinema, Game, Golf, sRGB, User 1, User 2
Compatibility
- Input Lag: 16.7 ms (1080P 60Hz)
- Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
- Horizontal Frequency: 15K~102KHz
- Vertical Scan Rate: 23~120Hz
I/O Interface
- HDMI in: HDMI-1 (1.4a/HDCP1.2), HDMI-2 (1.4b/HDCP1.4)
- USB Type A: USB Type A(2.0/Reader/FW Upgrade), USB Type A-1 (2.0/Power Supply1.5A)
- RS232 in (DB-9pin): (x1)
Audio
- Speaker: 10W
- Audio out (3.5mm Mini Jack): (x1)
Environment
- Operating Temperature: 0~40℃
- Power Supply: AC 100 to 240 V, 50/60 Hz
- Typical Power Consumption (110V): 215W
- Stand-by Power Consumption: <0.5W
- Acoustic Noise (Typ./Eco.)(dB): 34dBA/28dBA
Projection System: DLP
Dimensions (WxHxD): 11.95 x 4.23 x 8.69 inch (303.5 x 107.4 x 220.7mm)
Net Weight: 5.84 lbs (2.65 kg)
What's in the Box
- AH30ST Projector
- Remote Control w/ Battery
- Power Cord
- Lens Cover
- Quick Start Guide
